SEAFLO 51 Series Water Pressure System

SFWSK1-055-060-003

Description

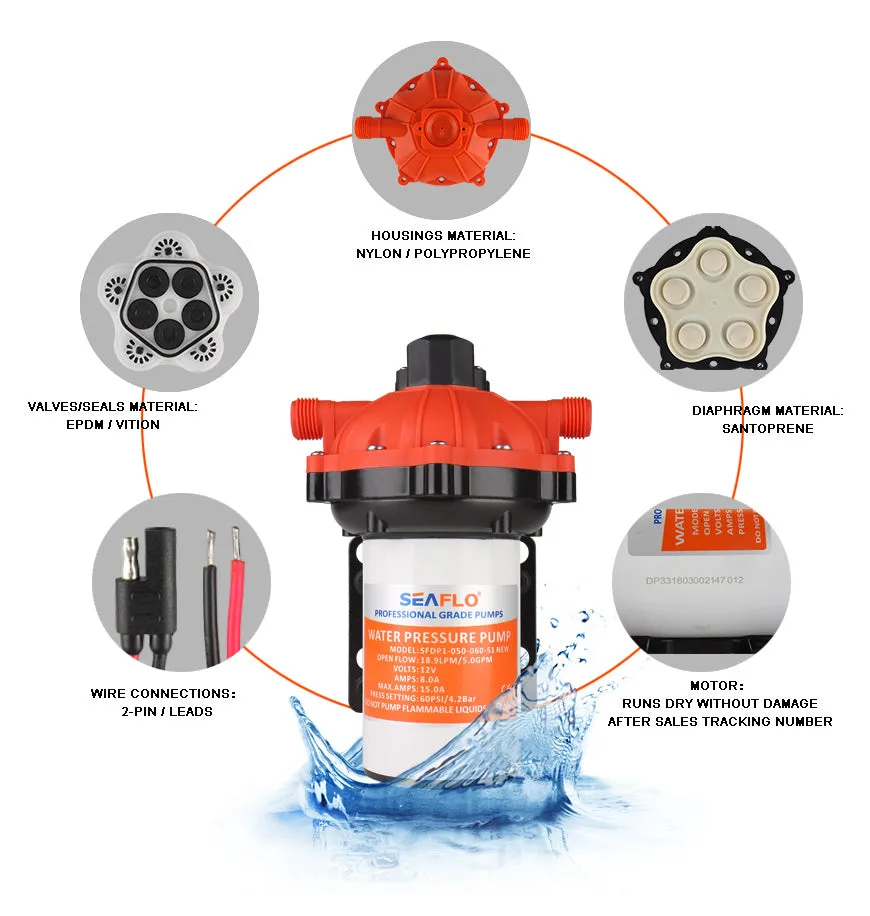

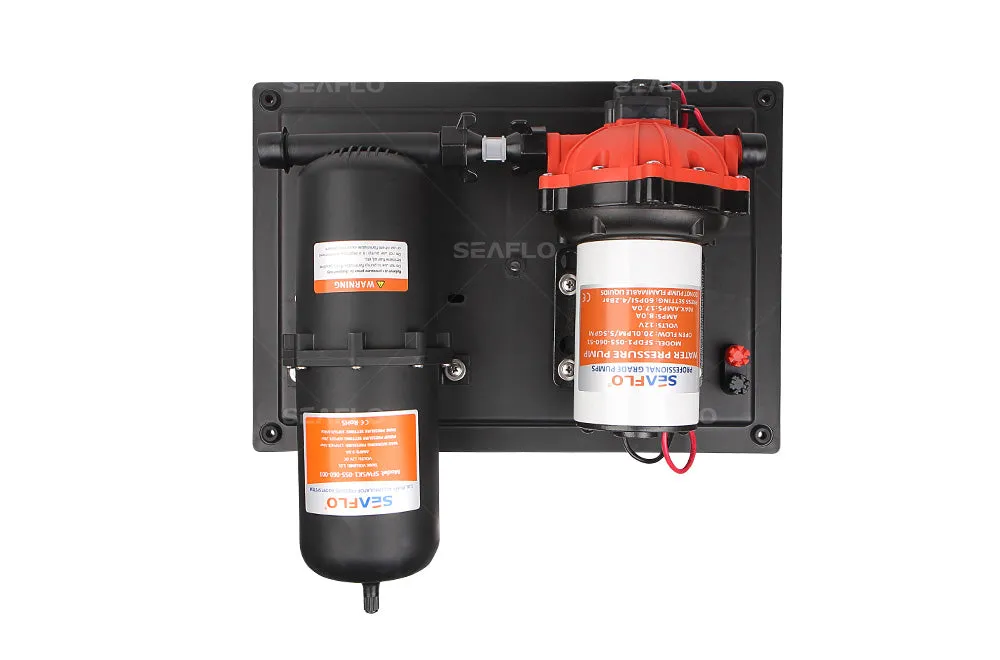

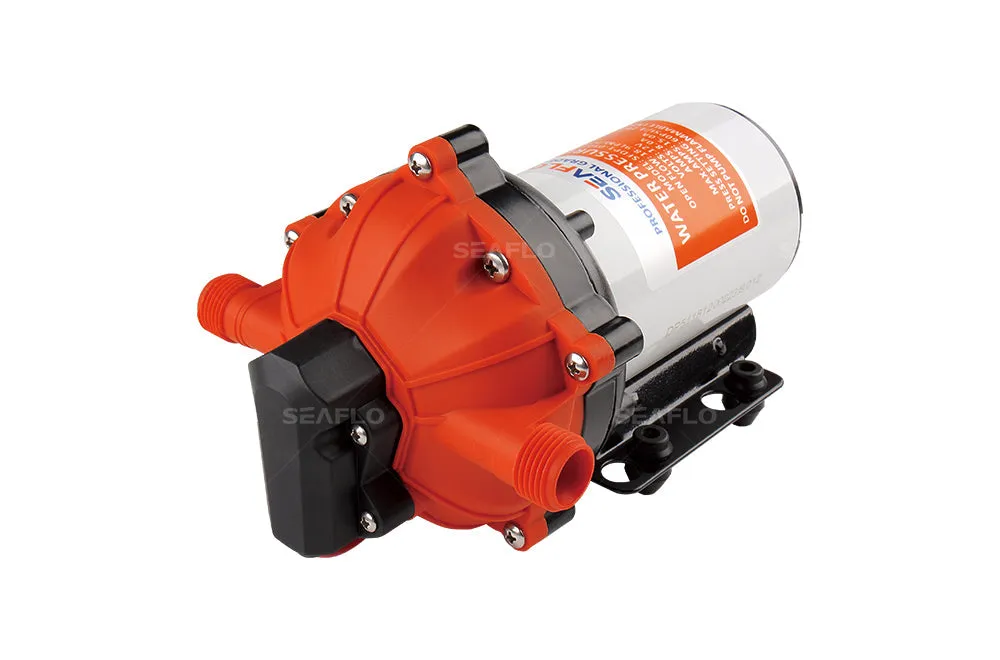

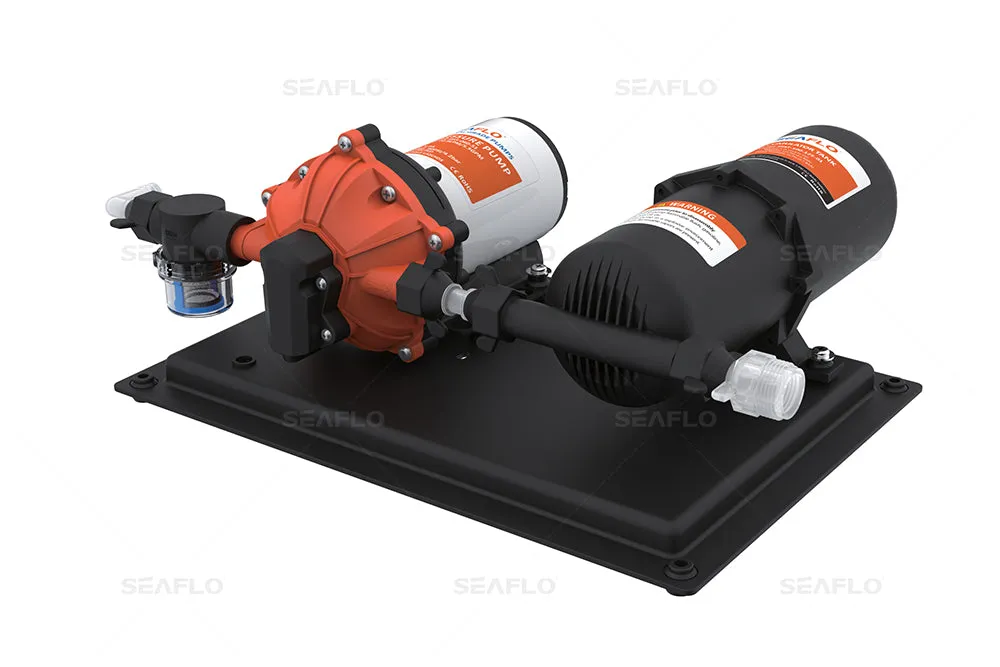

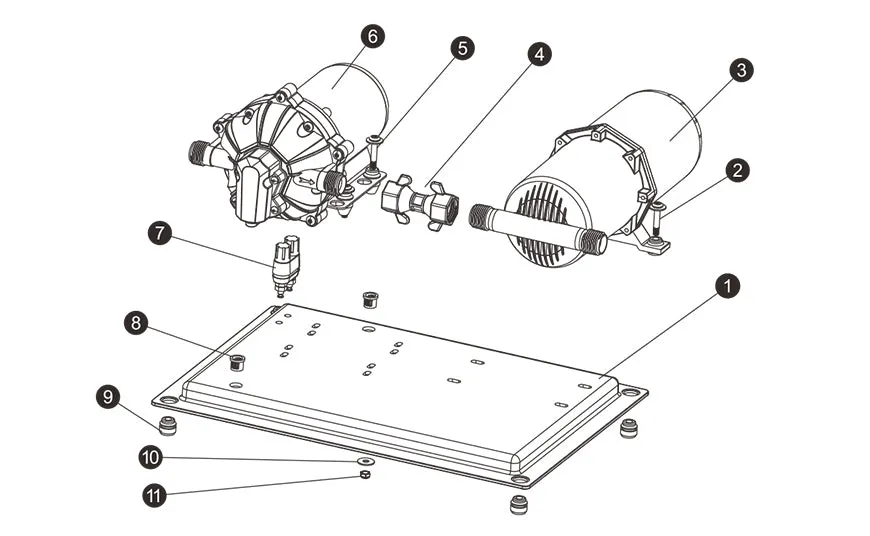

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber 12 Volt diaphragm pump, strainer, and pre-pressurized accumulator tank with quick connect electrical connections pre-mounted on a mounting plate for your convenience!

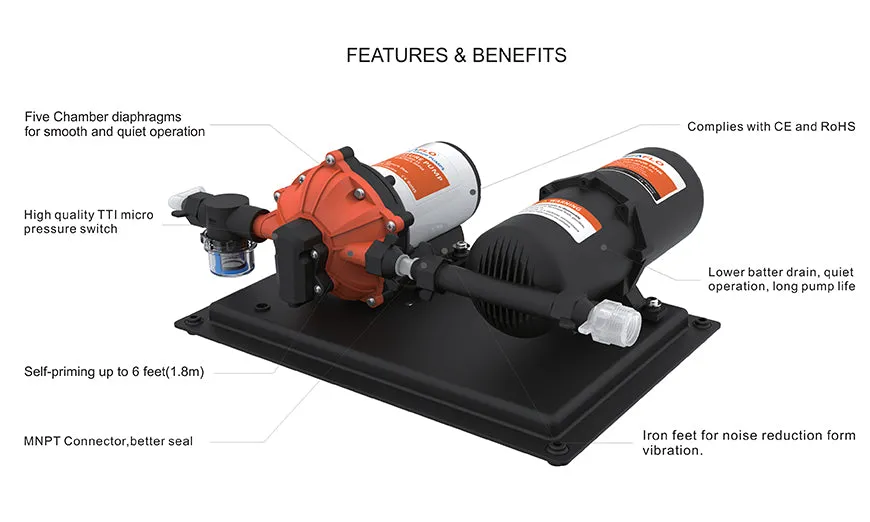

Features & Benefits:

• Powerful 5.5GPM (20.8LPM) flow rate
• Ultra quiet and smooth water flow
• Self-priming up to 6FT
• Can supply multiple fixtures
• Built-in adjustable pressure switch
• ease pre-assembled installation
• Heavy-duty, corrosion resistant motor
• Pump can run dry without damage

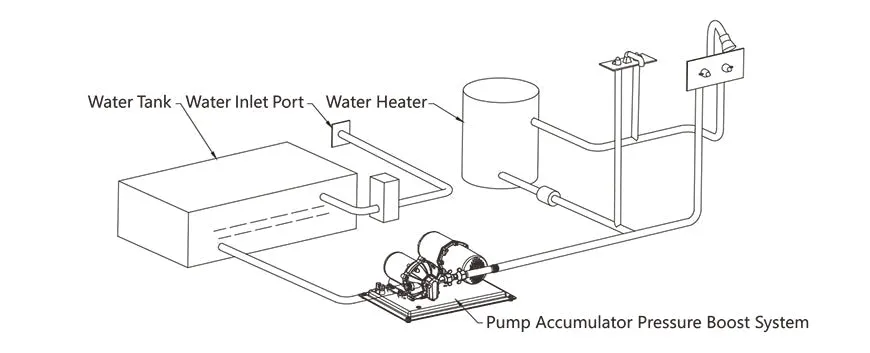

• Can be used for new or existing water systems

Specifications:

• Voltage: 12vDC
• Max Amp draw: 17A

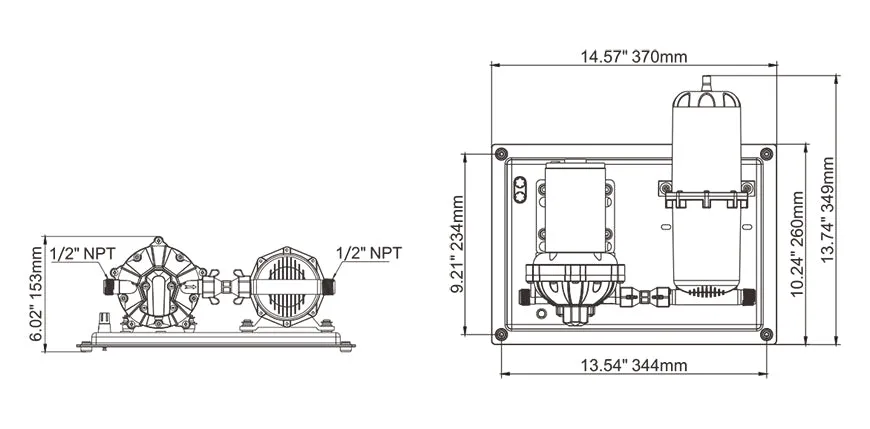

• Connections: 1/2" MNPT

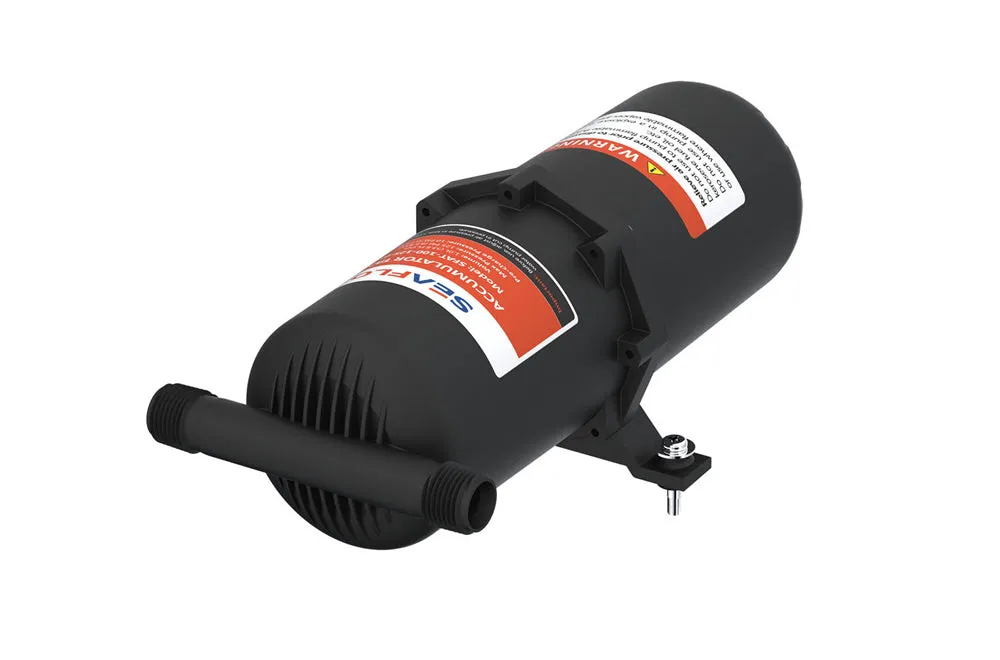

• Tank Volume: 1L
• Pressure on/off: 10PSI / 60PSI
• Weight: 14.3lbs (6.45kg)
• Self Prime: 6FT lift

• Max operating temperature: 140F (60C)
