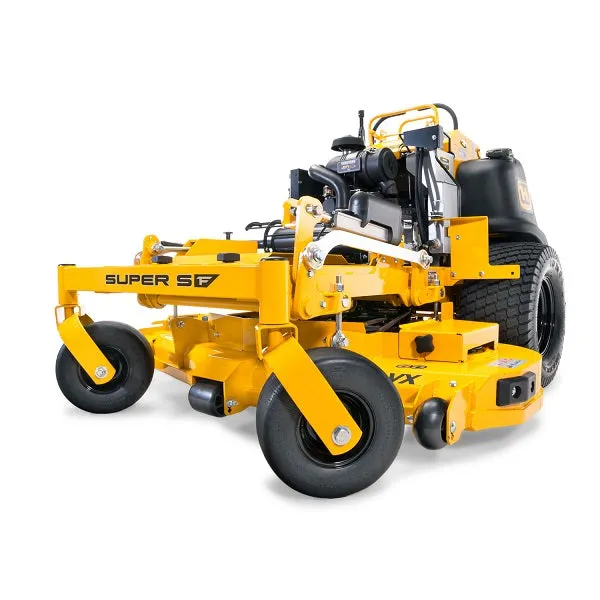

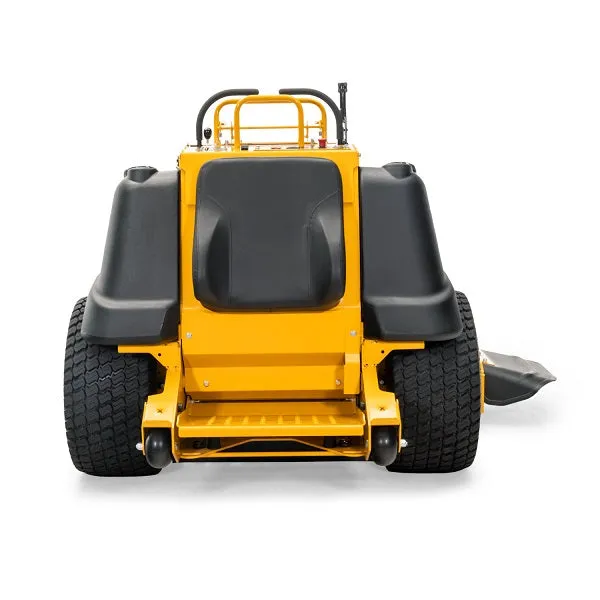

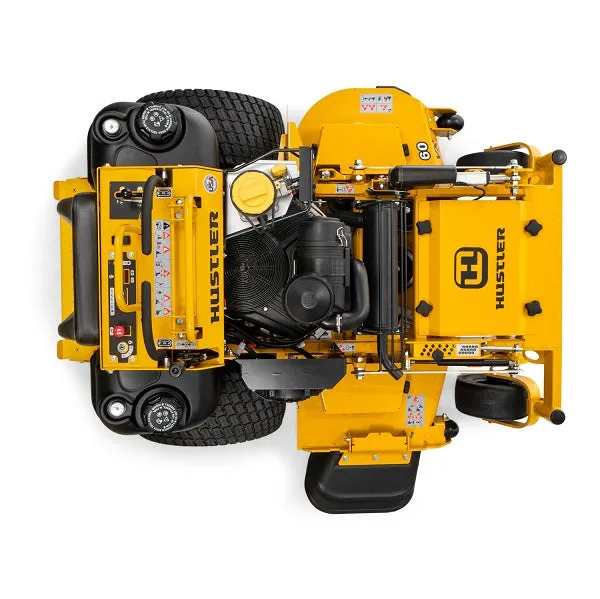

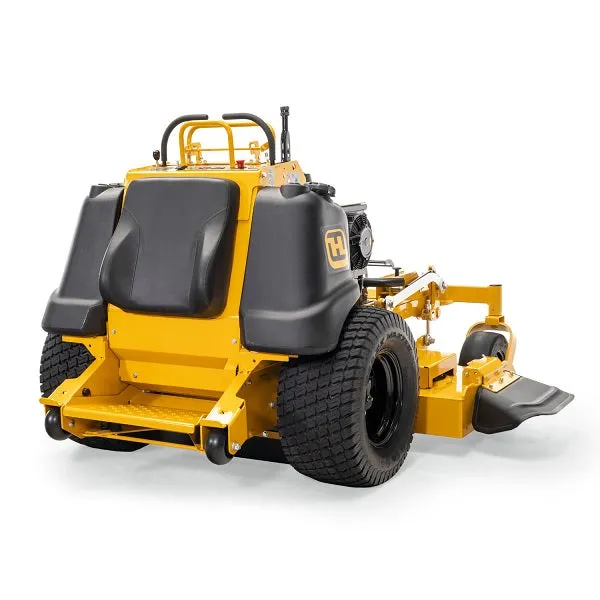

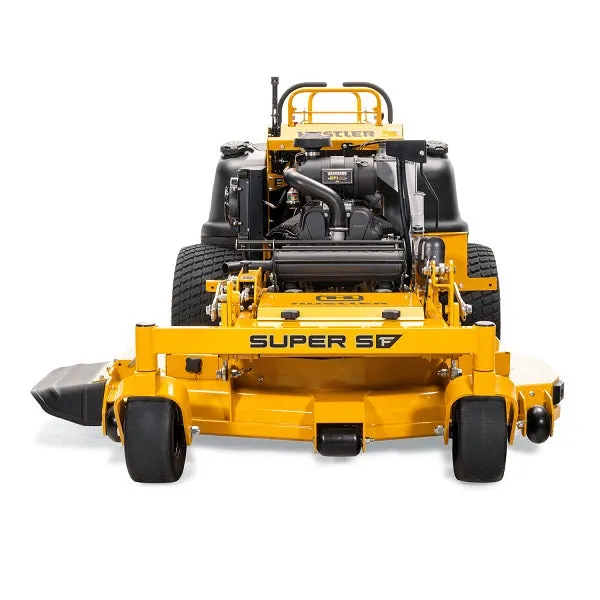

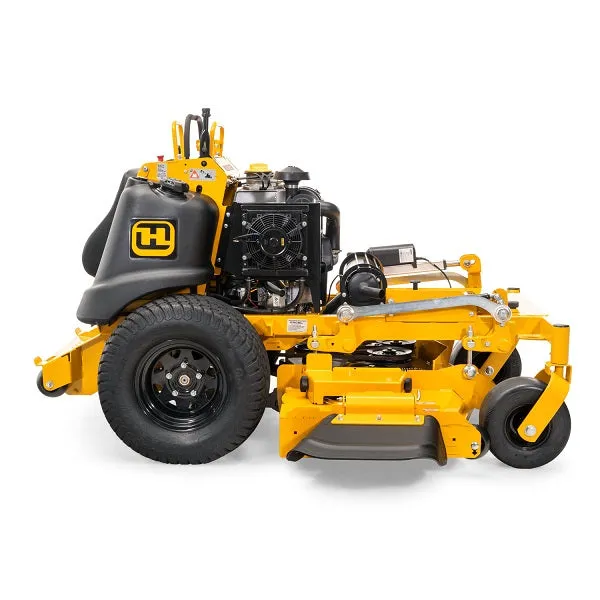

The Biggest, Fastest and Strongest Stand-on - Super SF
The Hustler Turf Super SF is the newest and biggest addition to Hustler's popular stand-on family of mowers. This monster mower is for the busy commercial contractor who needs to mow large properties with speed and precision. The Super SF comes equipped with dual fuel tanks, the newest fabricated VX deck, and at 26 inches, Hustler's got the biggest tires in the stand-on game. With a heavy-duty hydraulic system including 21cc pumps and Parker wheel motors, the Super SF can reach speeds up to 15 mph.
- Electric Actuator Deck Lift: Easily adjust cutting height from 2.0” to 5.5”. Quickly raise your mower deck on the fly to avoid obstacles.
-
A Hydraulic System on Steroids: Hydro-Gear 21 cc pumps combined with Parker TG wheel motors, a 6-quart reservoir capacity, and hydraulic cooling (8” fan) make up our industry-leading hydraulic system. Large high capacity pumps increase unit longevity.
-
Dual Fuel Tanks: Dual Fuel Tanks Dual tanks with 13.9” gallon fuel capacity for all day mowing and less downtime. When you stop to refuel, your productivity stops too.
- Large Drive Tires: Rear tires measure 26” x 12." Currently the biggest stand-on mower drive tires on the market. Bigger tires equals better handling on hills and uneven terrain and creates an overall more comfortable ride.
-
Speed Control Bar Adjustment: Runs up to 15 mph with a reduced speed up to 10 mph. Perfect for training purposes and trimming.
- Vanguard EFI Oil Guard: The Vanguard® Oil Guard™ System is a revolutionary innovation that extends oil maintenance intervals to 500 hours. This EFI 40hp engine is optional on the Super SF.
Hustler Super SF Accessories |
|
| Side Mesh Catcher 3.5 Bushel | |
|
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
|
|
Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
|
| Mulching Kit 60" | |
| Mud Flap Kit | |
| Stripe Kit | |
| Light Kit | |
| Michelin X-Tweel Turf Tire 24 x 12N12* | |
*Deck will need to be releveled after Tweel is installed
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX1000 EFI |
| Engine Horsepower | 38.5 |
| Displacement | 999cc |
| Cooling | Air Cooled |
| Air Cleaner |
Heavy duty canister |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear 21cc PY pumps with Parker TG wheel motors |
| Reservoir Capacity | 3 quarts |
| Hydraulic Cooling | Oil Cooler w/ 8" fan |
| Fuel Capacity | 13.9 gal. |
| Ground Speed (Fwd) | Up to 15 mph (Using speed limiter: Up to 10 mph) |
| Parking Brake |
Hand operated drum brakes
|
Deck |
|
| Cutting Width | 60" |
| Cutting Height | 2.0" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Electric Actuator |
| Number of Blades | 3 |
| Blade Length | 20.50" |
| Blade Tip Speed | 18,400 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
7 gauge fabricated with 7 gauge wrappers
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | 11 gauge formed channel with rolled edge |
Construction |
|
| Frame | 1.5" X 3" steel tubing |
| Engine Plate | 7 gauge |
| Operator Platform | 7 gauge |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2" steel |
Dimensions |
|
|
Front Tire (Inches) |
13 x 6.5-6 Run Flats |
| Drive Tire (Inches) | 26 x 12-12 |
| Weight (lbs) | 1450 |
| Height (Inches) | 50 |
| Length (Inches) | 79.2 |
| Width w/ Chute Up (Inches) | 61.6 |
| Tire-to-Tire Width (Inches) | 53.5 |
| Productivity (Acres Per Hour) | 7.27 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
