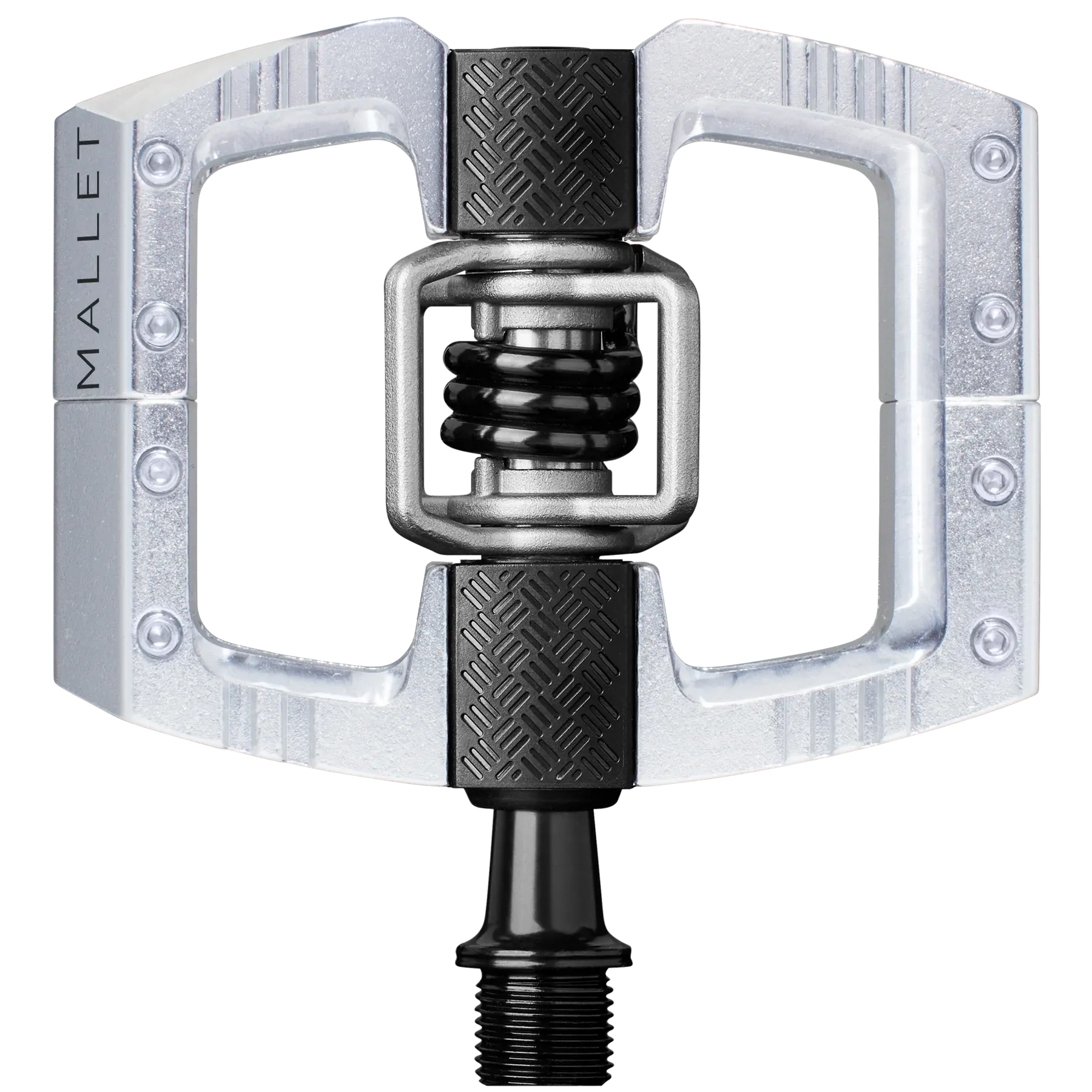

Mallet DH Race II

It’s no coincidence that the beefed up version of the Mallet Enduro pedal is used by the best riders on the DH World Cup circuit.

The Mallet DH pedal has been designed to offer excellent support whatever the conditions and even when the shoe is not clipped in, thanks to the concave platform and the 8 adjustable pins on each side.

Features

    Concave platform for secure foothold
    8 adjustable pins per side for grip
    Traction pad technology customizable interface
    Ribbed body for better traction when unclipped
    Chamfered edges to reduce rock-strikes
    57mm q-factor for stability at speed
    4-sided entry / superior mud shedding
    Customizable float & release angle
    Premium bearing & double seal system


Specs

Body Material 6061-T6 Aluminum

Body Dims (L x W) 100mm x 78mm

Wing Material 17-4PH Stainless

Spindle Length 57mm

Traction Pins 8 adjustable per side

Pin Length 8mm

Inner Bearing Type Igus LL-glide bearing

Outer Bearing Type Enduro MAX cartridge bearing

Endcap Hex alloy

Spindle Material Forged SCM 435 Chromoly Steel

Spring Material 300 series stainless steel

Max Rider Weight No restriction

Weight 479g per pair

Included Cleat Type 15° / 20° Standard Release, 6° Float

Cleat Notice Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.

Warranty 5 years
