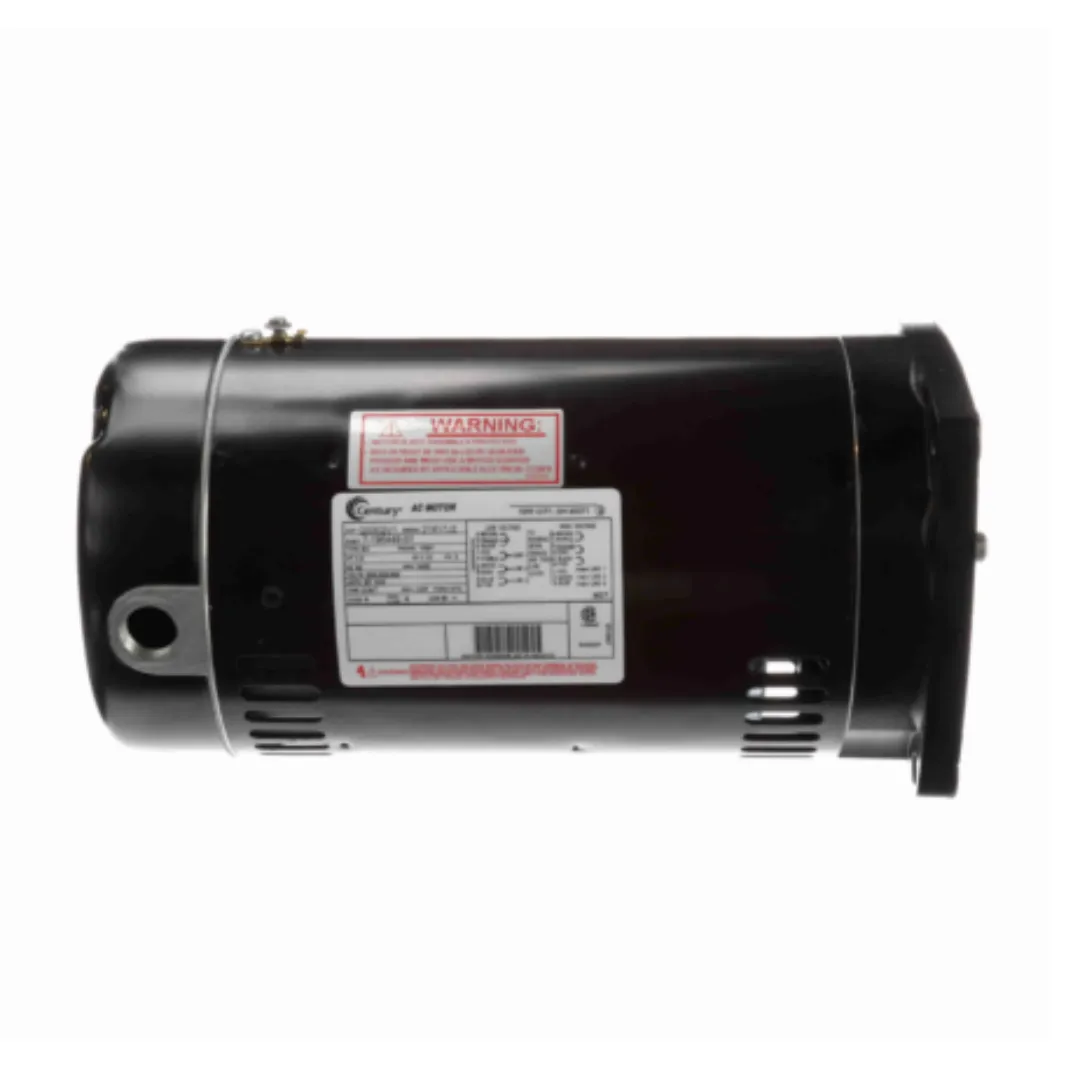

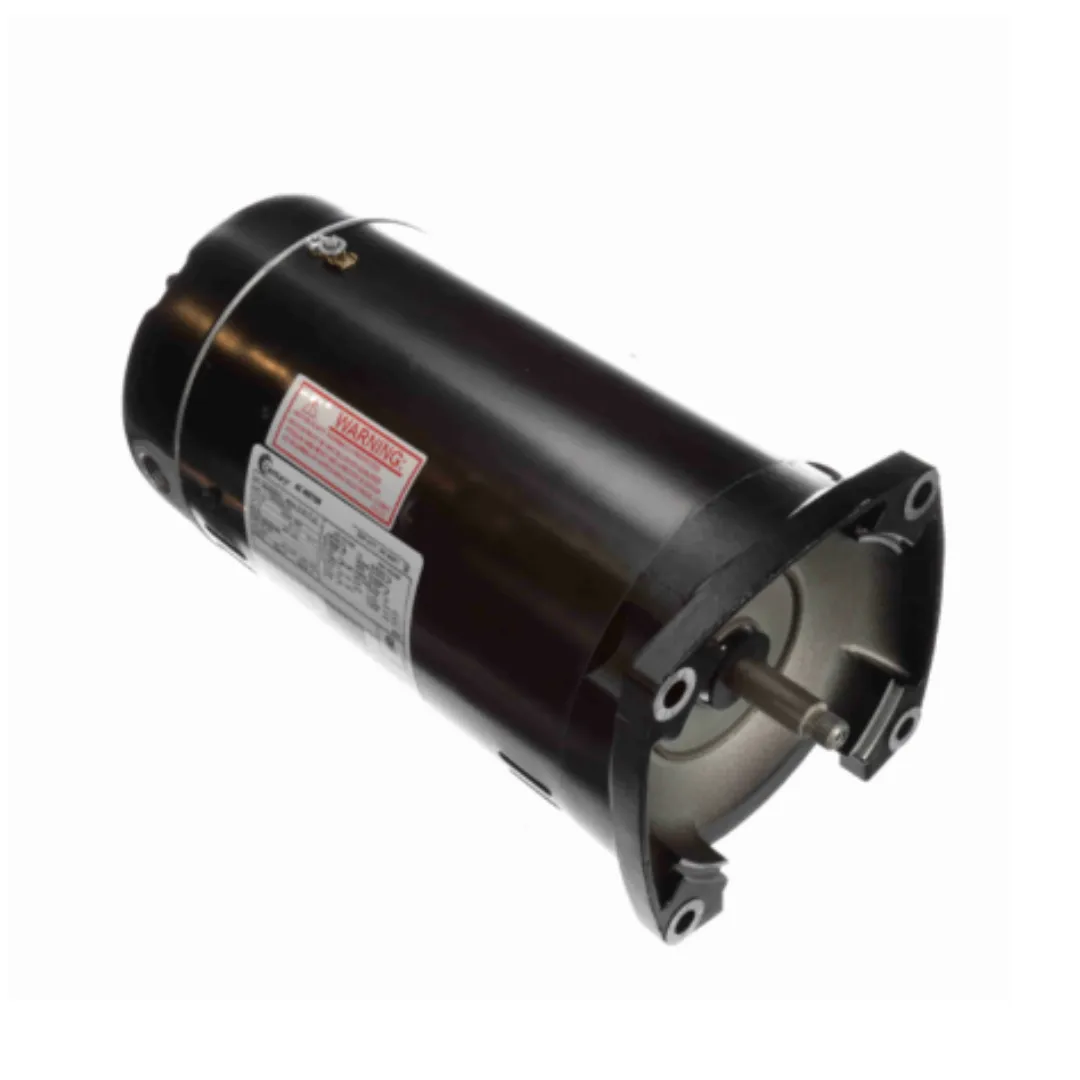

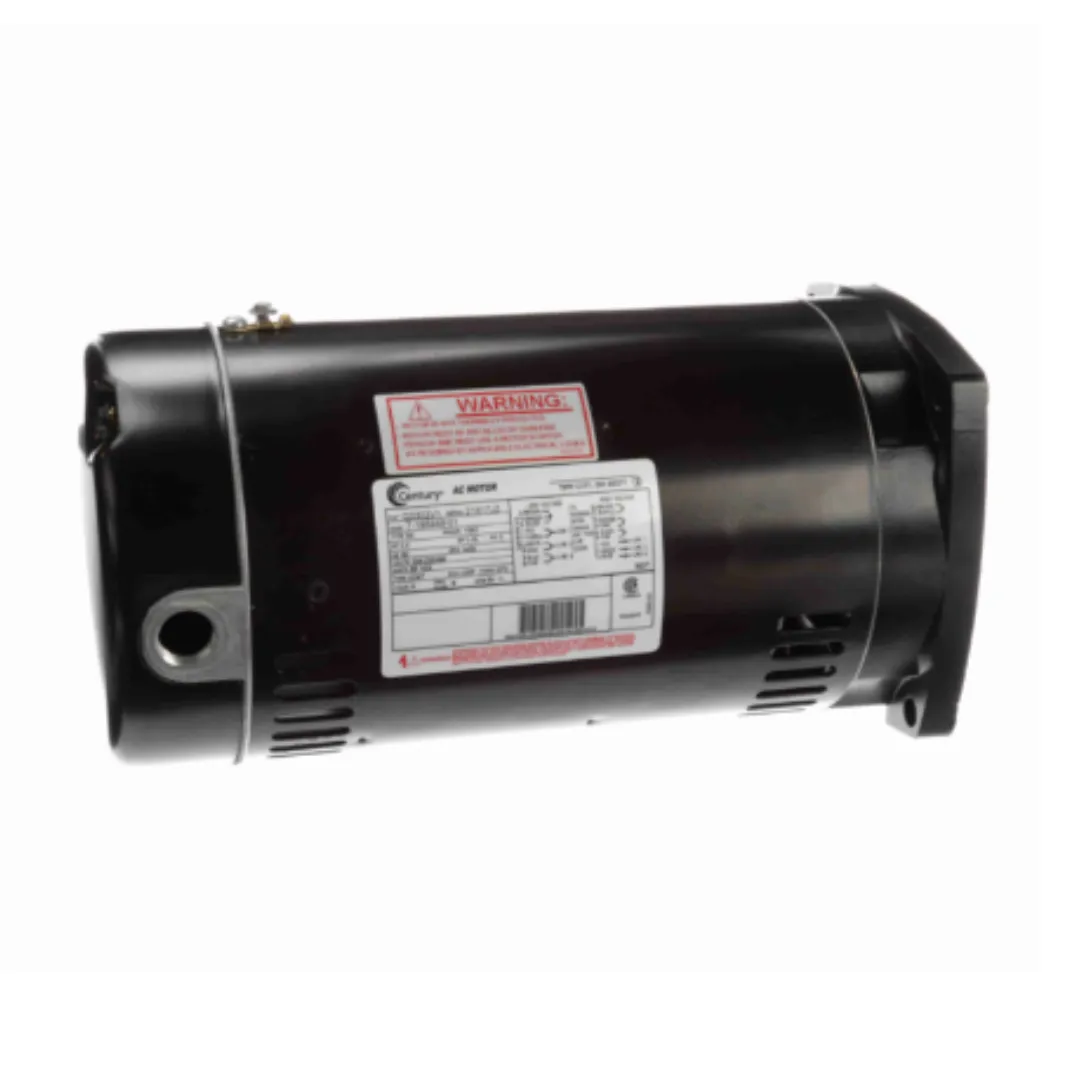

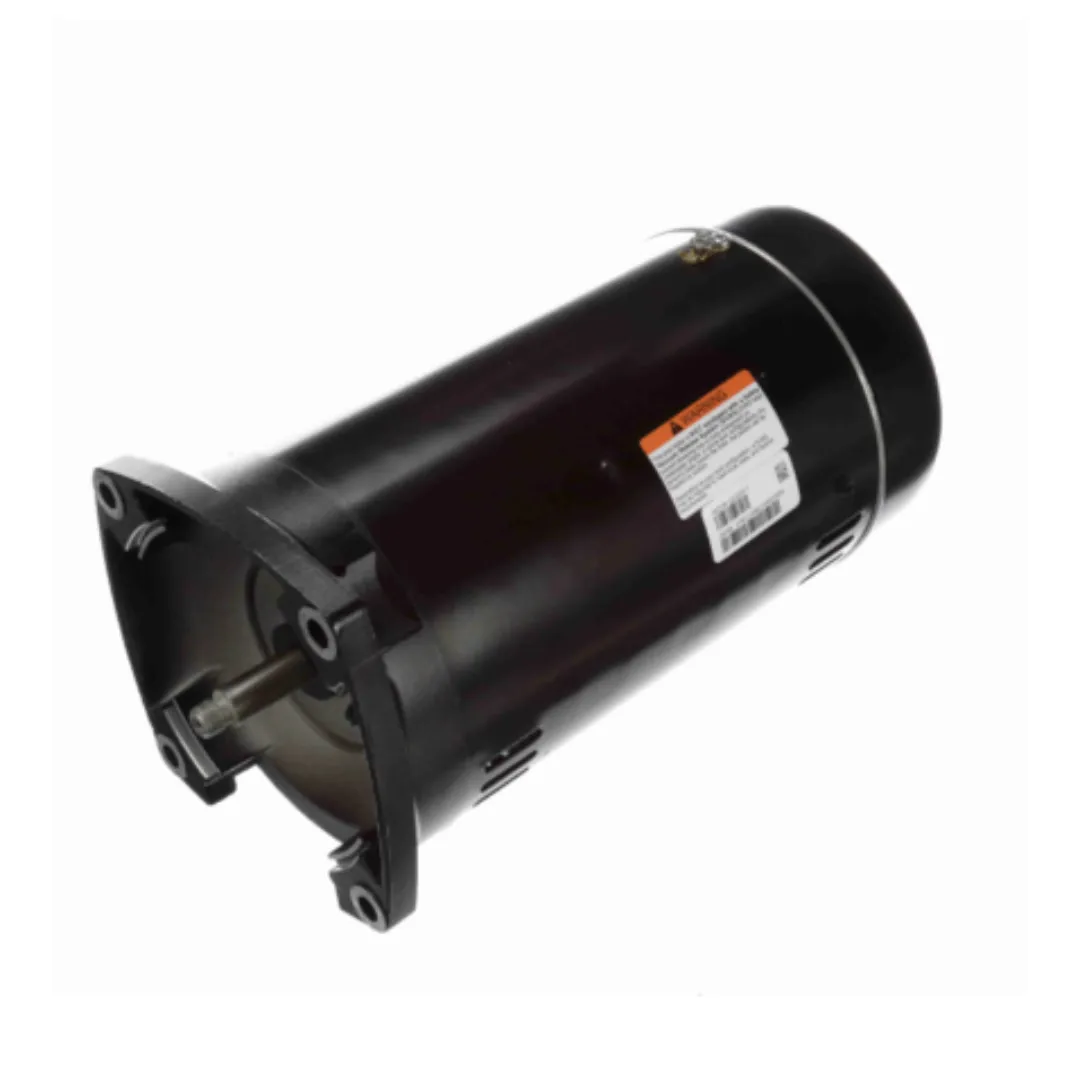

Century Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP - Q3302V1

• All Copper Windings
• Open Dripproof
• 303 Stainless Steel Shaft
• Threaded Shaft
• Sealed Ball Bearings
• 50°C Ambient
• 3 Phase
• Jet Pump
• Square Flange

Specifications:

• Phase: 3
• Output HP: 3.0 Hp
• Output KW: 2.2 kW
• Voltage: 208-230/460 V
• Speed: 3450 rpm
• Service Factor: 1.15
• Frame: Y56Y
• Enclosure: Open Drip Proof
• Thermal Protection: No Protection
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 10/5 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 3450
